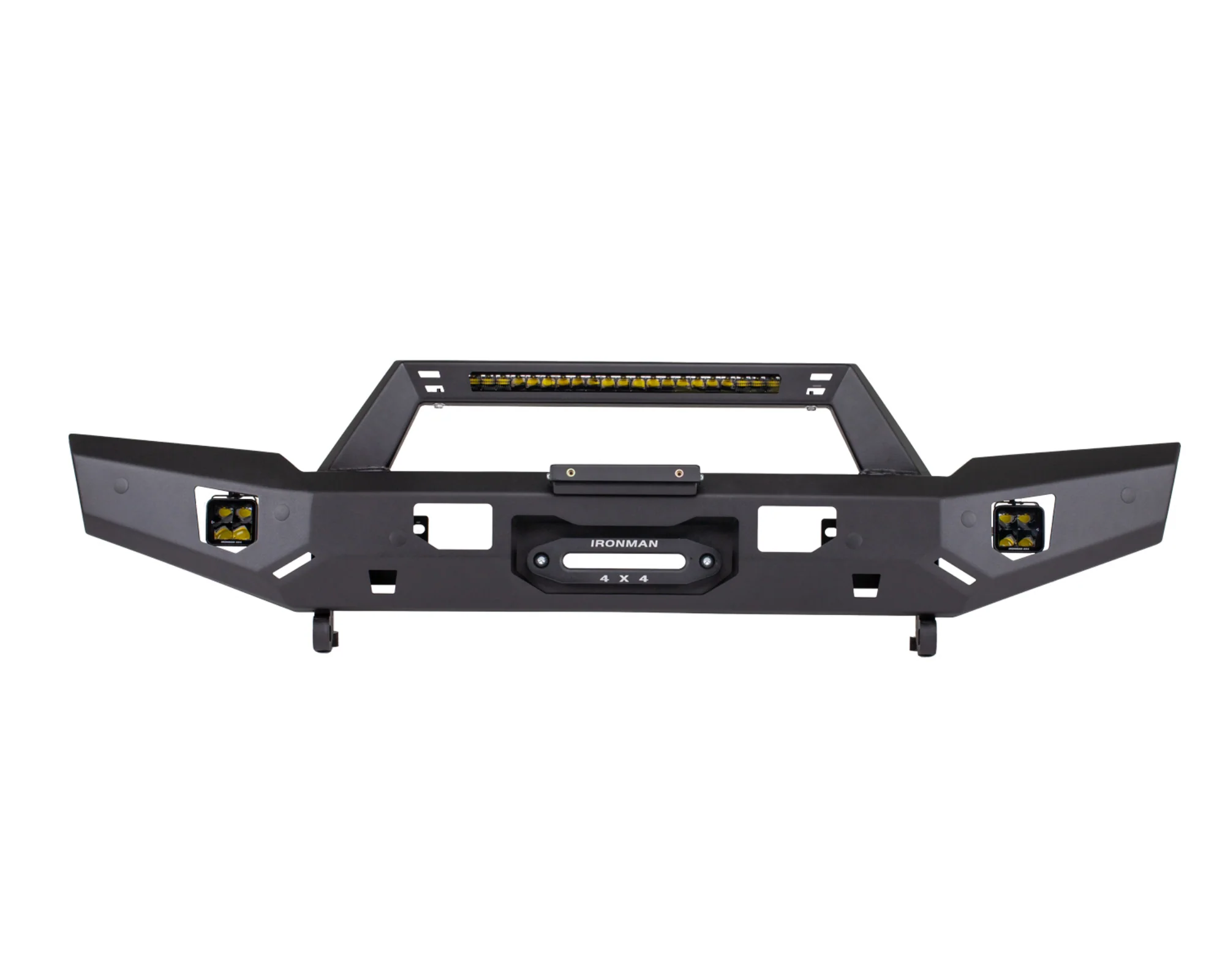

Raid Full Length Front Bumper Kit for Jeep Wrangler JK (2007-2017)

For proper fitment, you will need to purchase a vacuum pump relocation kit from a third-party.  See Installation for more details.

The RAID 4x4 bumpers blend the Australian mindset of functionality with American design characteristics. As a result, the protective bumper provides you and your passengers maximum safety for daily driving with the essential trail-ready features of improved vehicle protection, increased approach angle, additional ground clearance, and winch carrying capability.

The Ironman 4x4 Raid bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points (3,500kg/7,700lbs) give you a concrete foundation for recovery or towing.

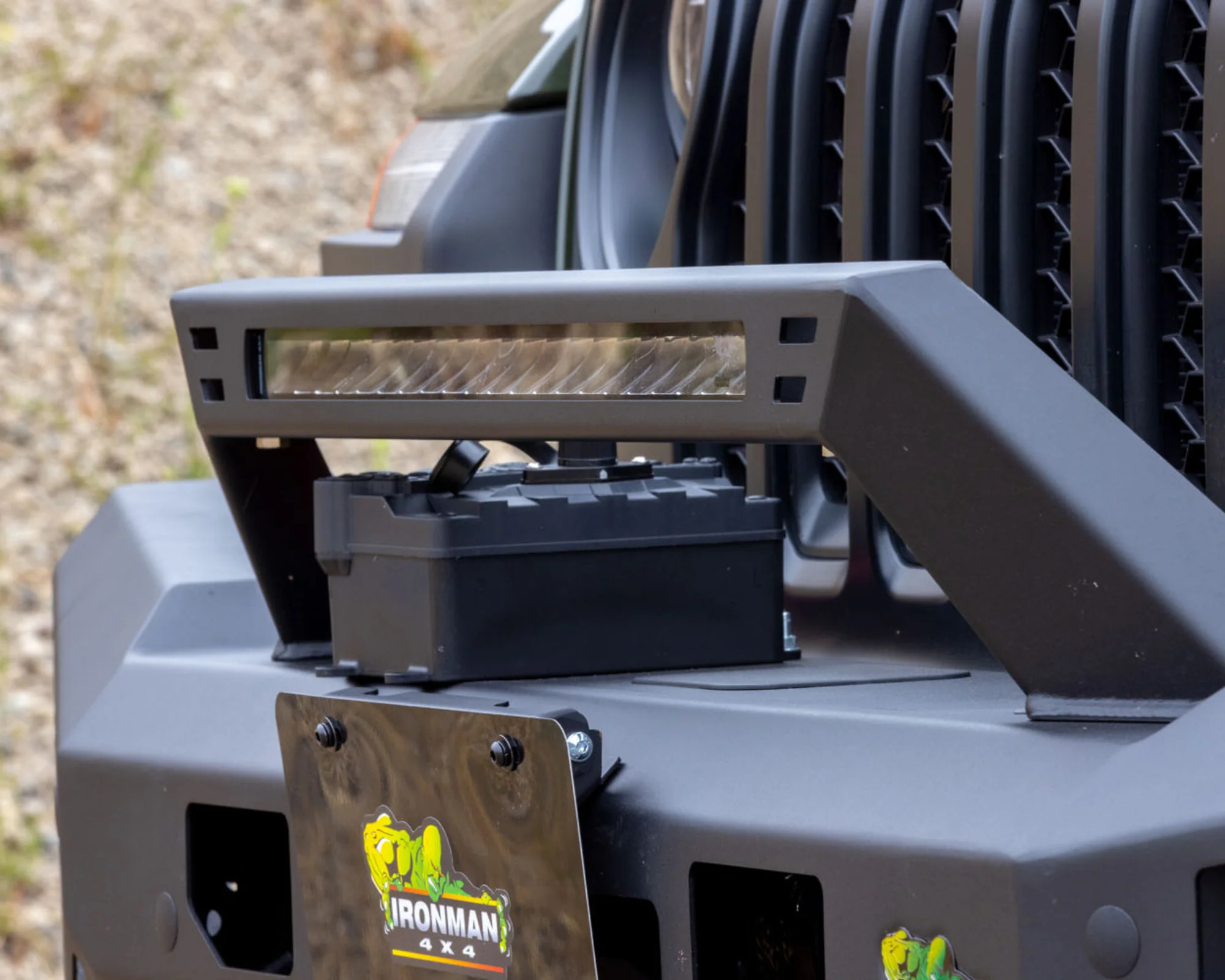

The Raid off-road steel bumper can come fully loaded with a 20", 105W single row OSRAM chip LED light-bar delivering projection of 8820 Raw lumens into the road ahead for confidence-boosting visibility in nighttime driving. The new hooded reflectors direct the light beam more effectively and reduce glare commonly found in light bars.

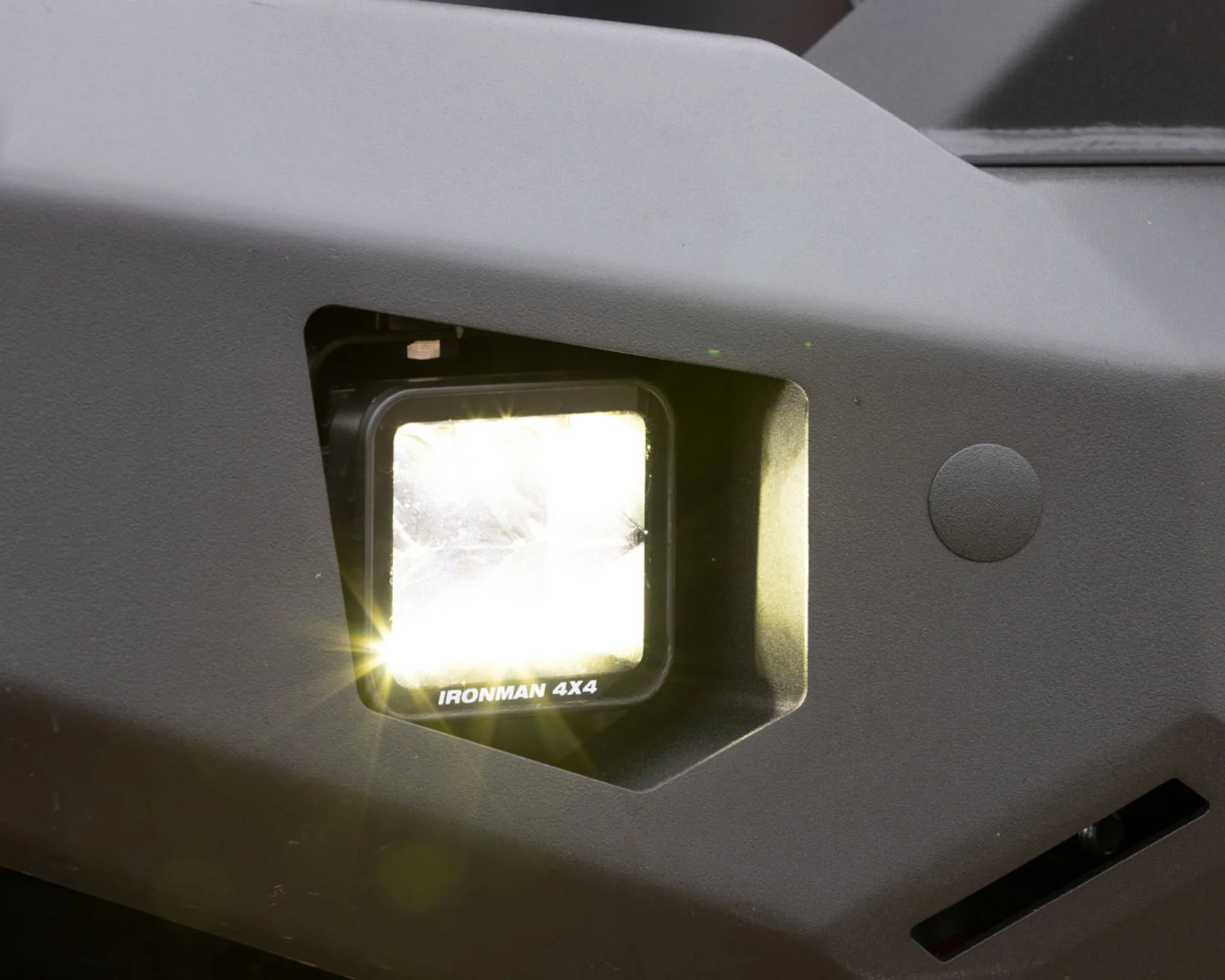

In addition to the powerful light-bar are two customizable OSRAM chip LED cube lights with up to 4800 lumens; choose between clear or amber, spot or flood. All lights feature a flat, UV-stable polycarbonate lens designed to reduce rain/snow/ice build-up.

Features:

• Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations

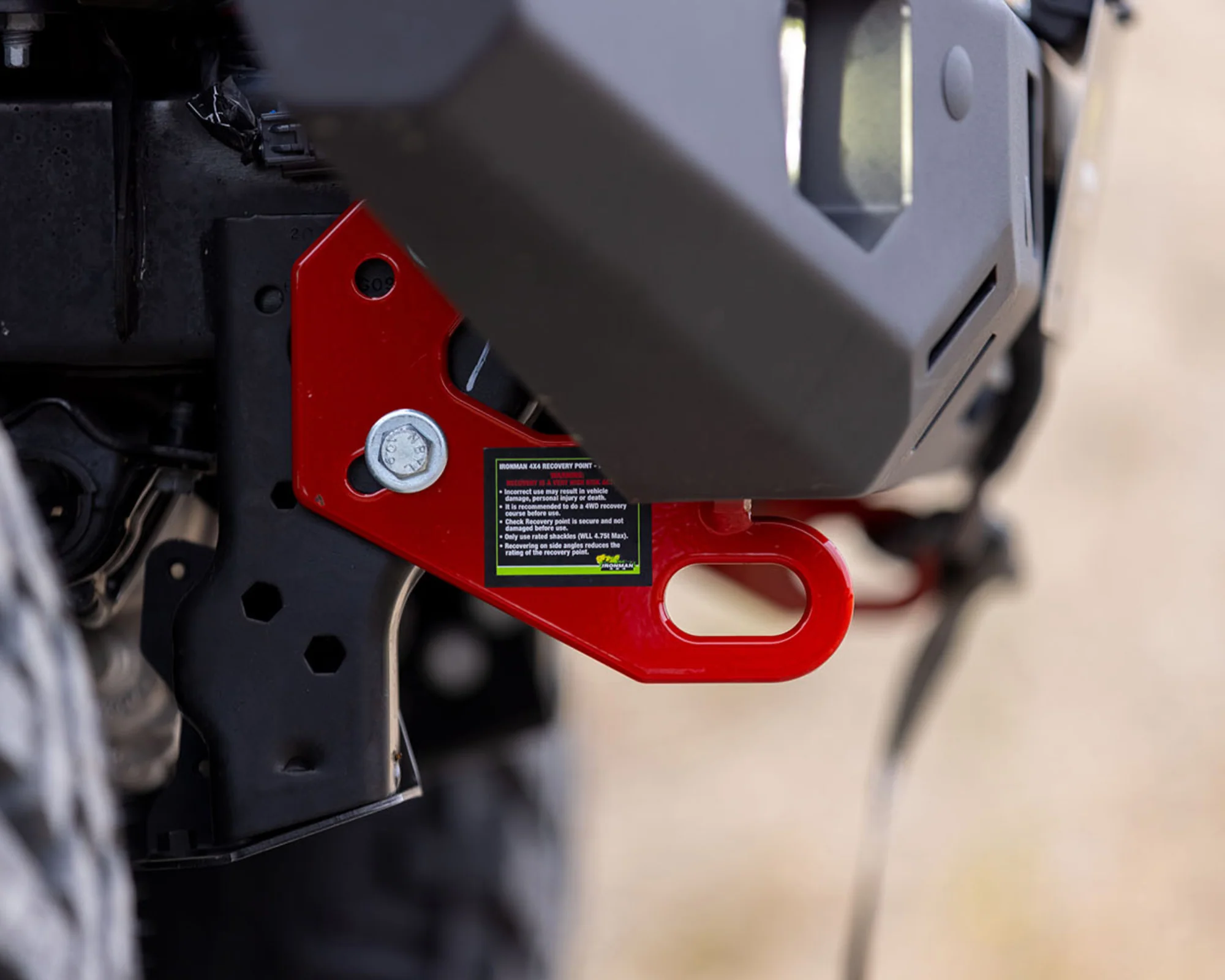

• Bolt-on, frame-mounted recovery points (3,500kg/7,700lbs) included with the bumper
• Integrated crumple zones transfer energy away from vehicle occupants
• ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
• Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified

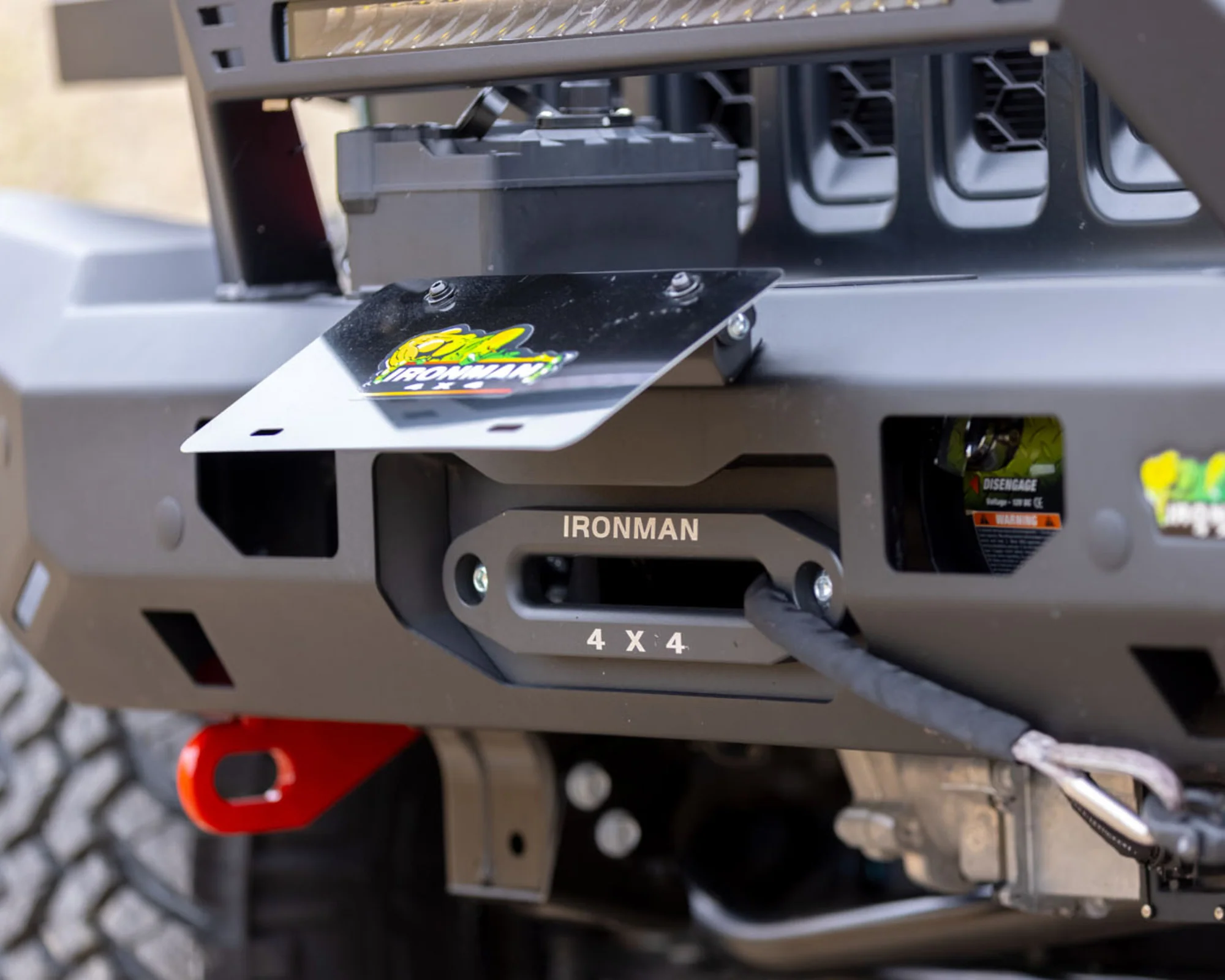

• Winch compatible with clutch handle access and line visibility
• Only compatible with 9500lbs winch
• Standard 10” x 4.5” winch mount footprint
• Pickled, cold-rolled steel manufacturing for impurity free template during assembly
• Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
• 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
• Hi-lift Jack points built into the bumper so there’s no need for high lift hooks
• Integrated light bar and dual cube lights
• Increased approach and departure angles provide maximum clearance for obstacles
• Compatible with factory parking sensors

Notes:

• Weight: 101 lbs
• Requires a vacuum pump relocation kit (not included) to install front bumper
• Only works with 9500 lbs winch
• Does NOT include wiring harness
